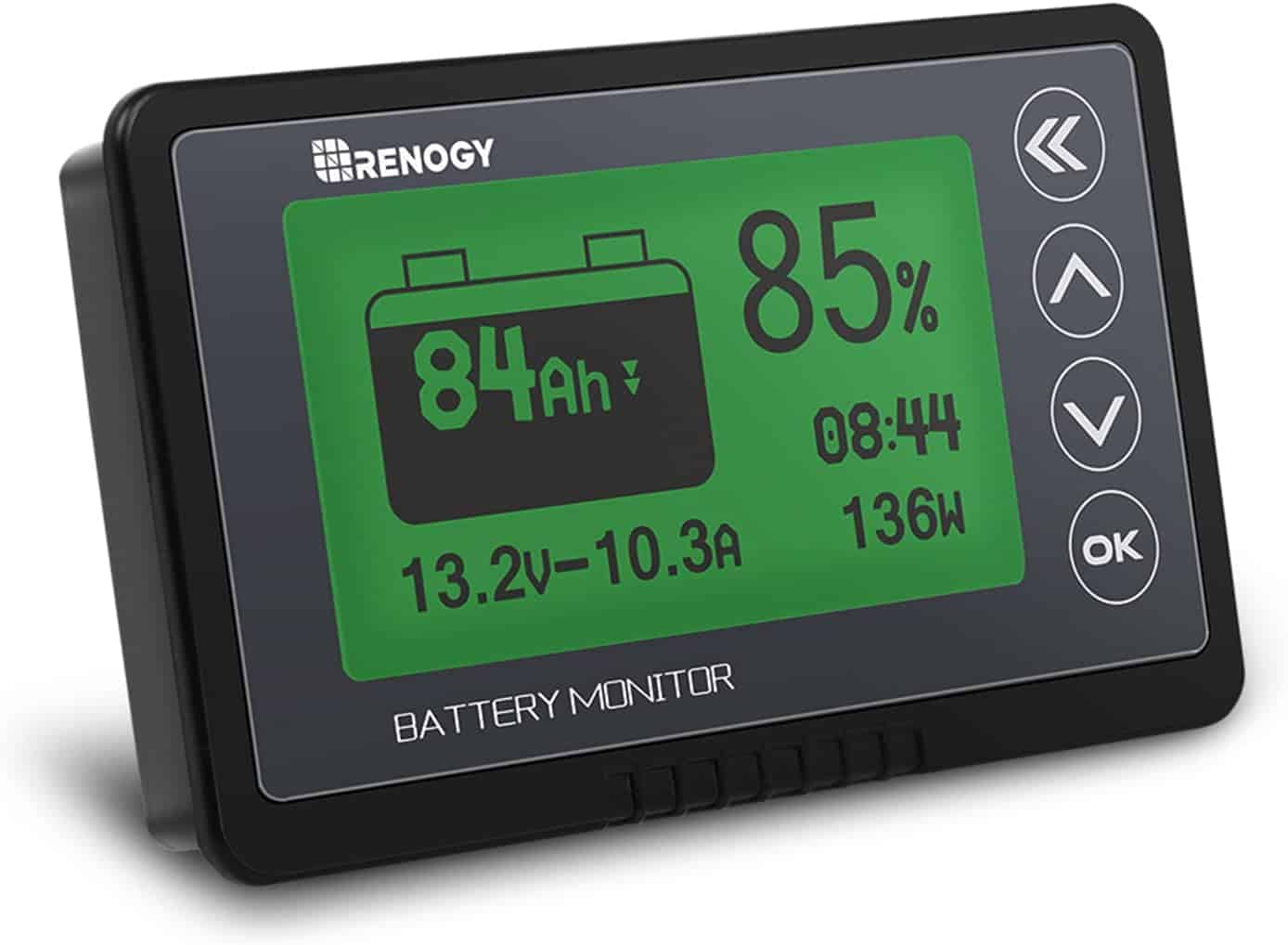

Renogy Battery Monitor with Shunt, High and Low Voltage Programmable Alarm, Shielded Cable, Compatible Lithium Sealed, Gel, Flooded Batteries, Black

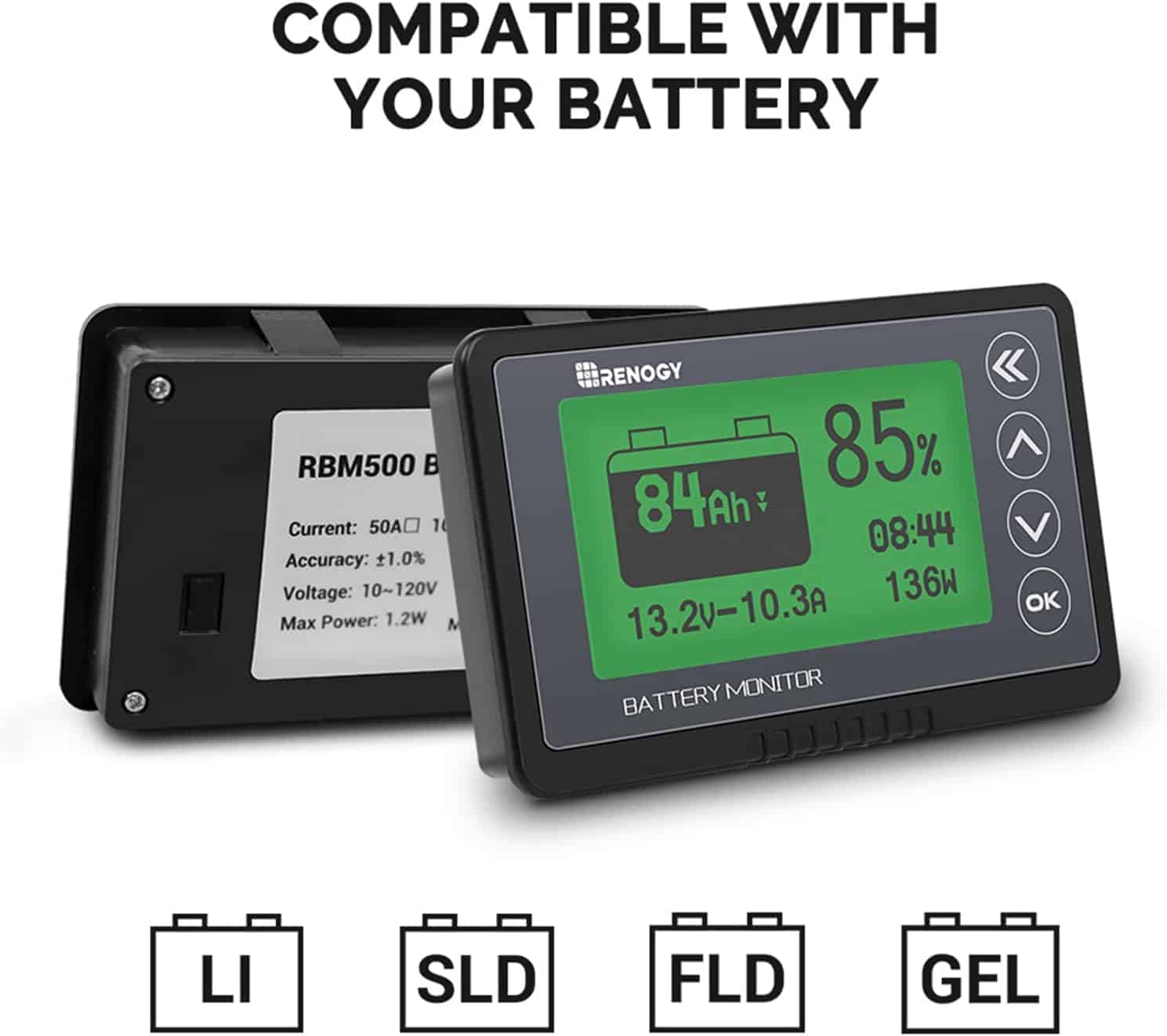

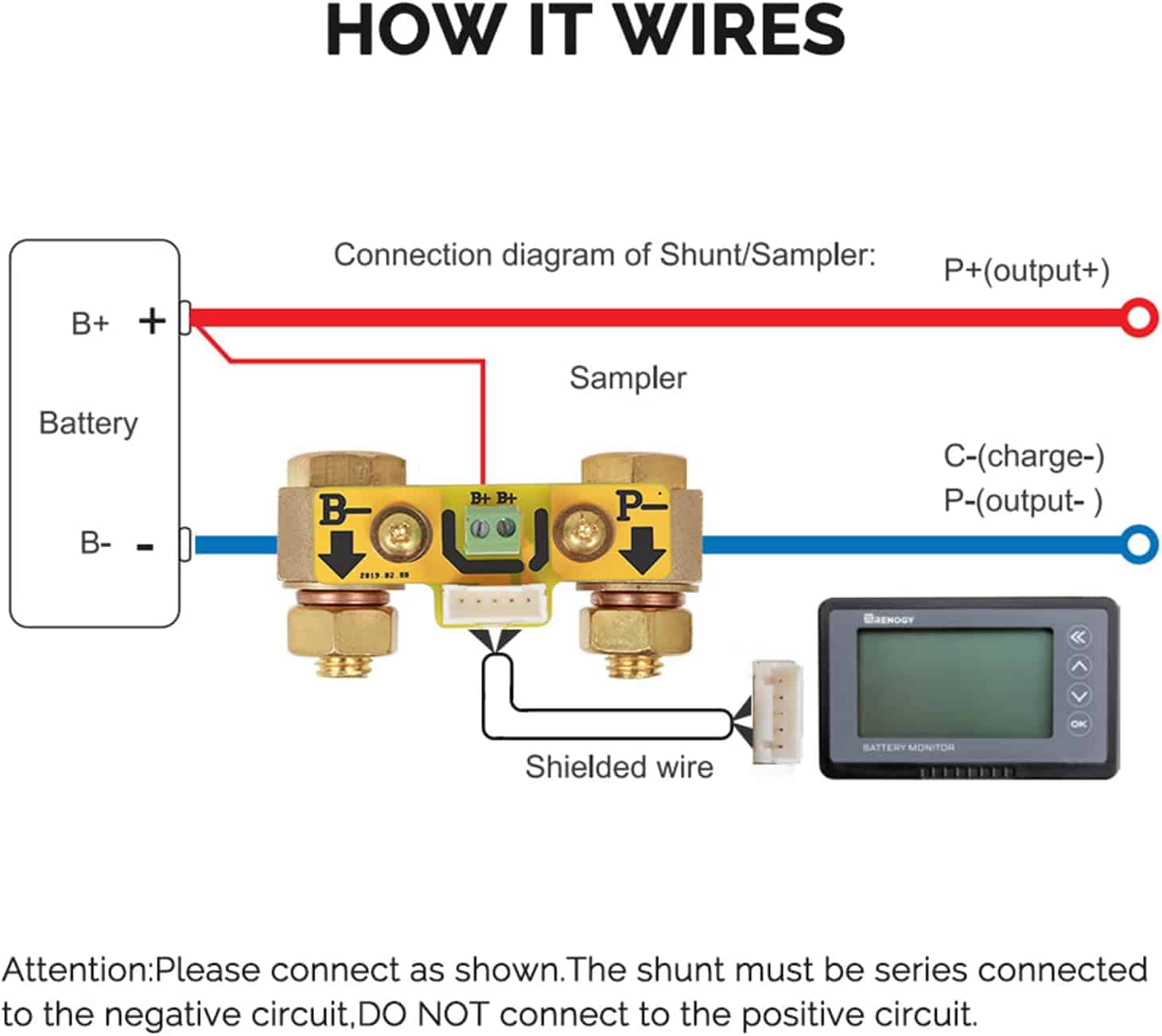

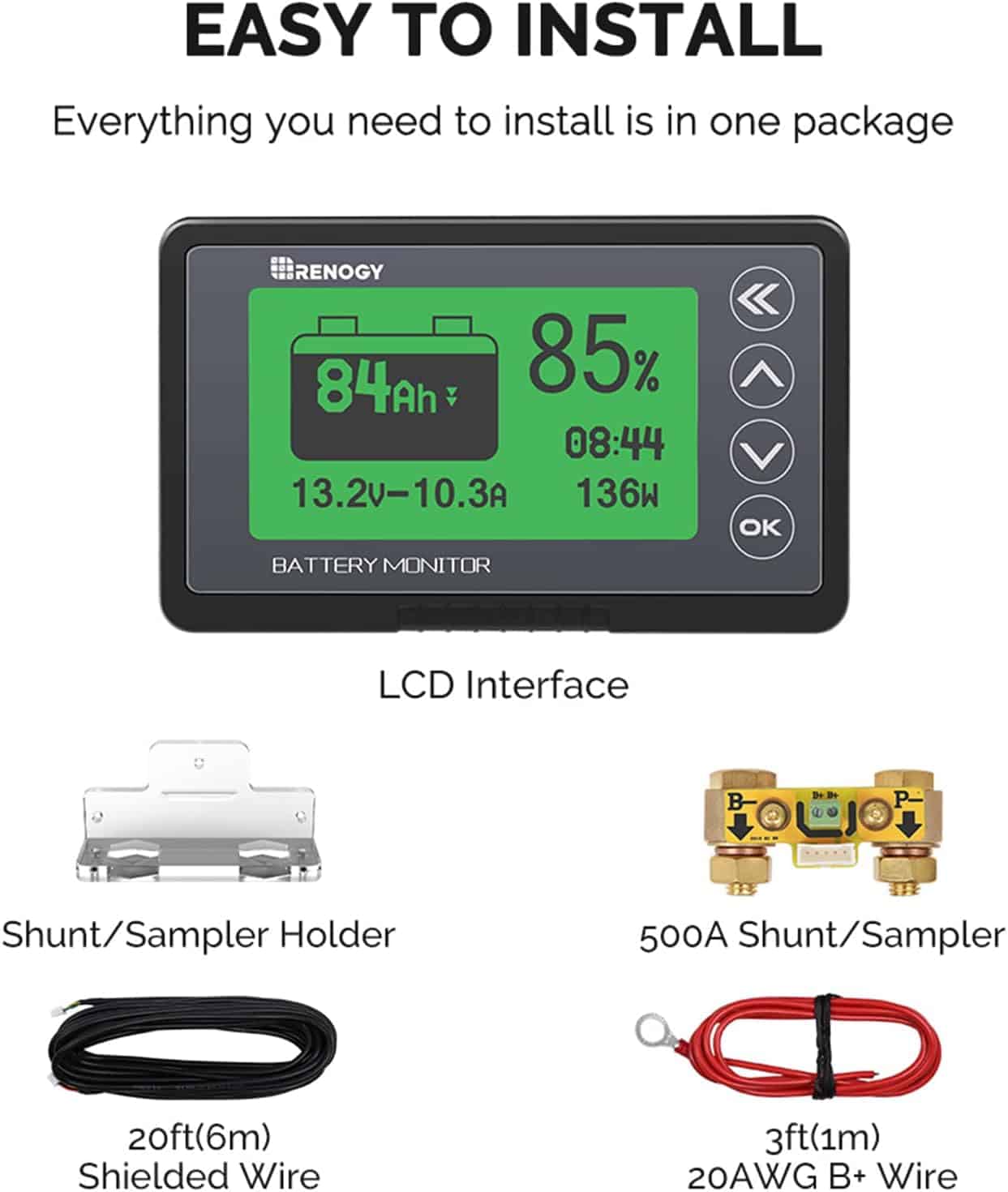

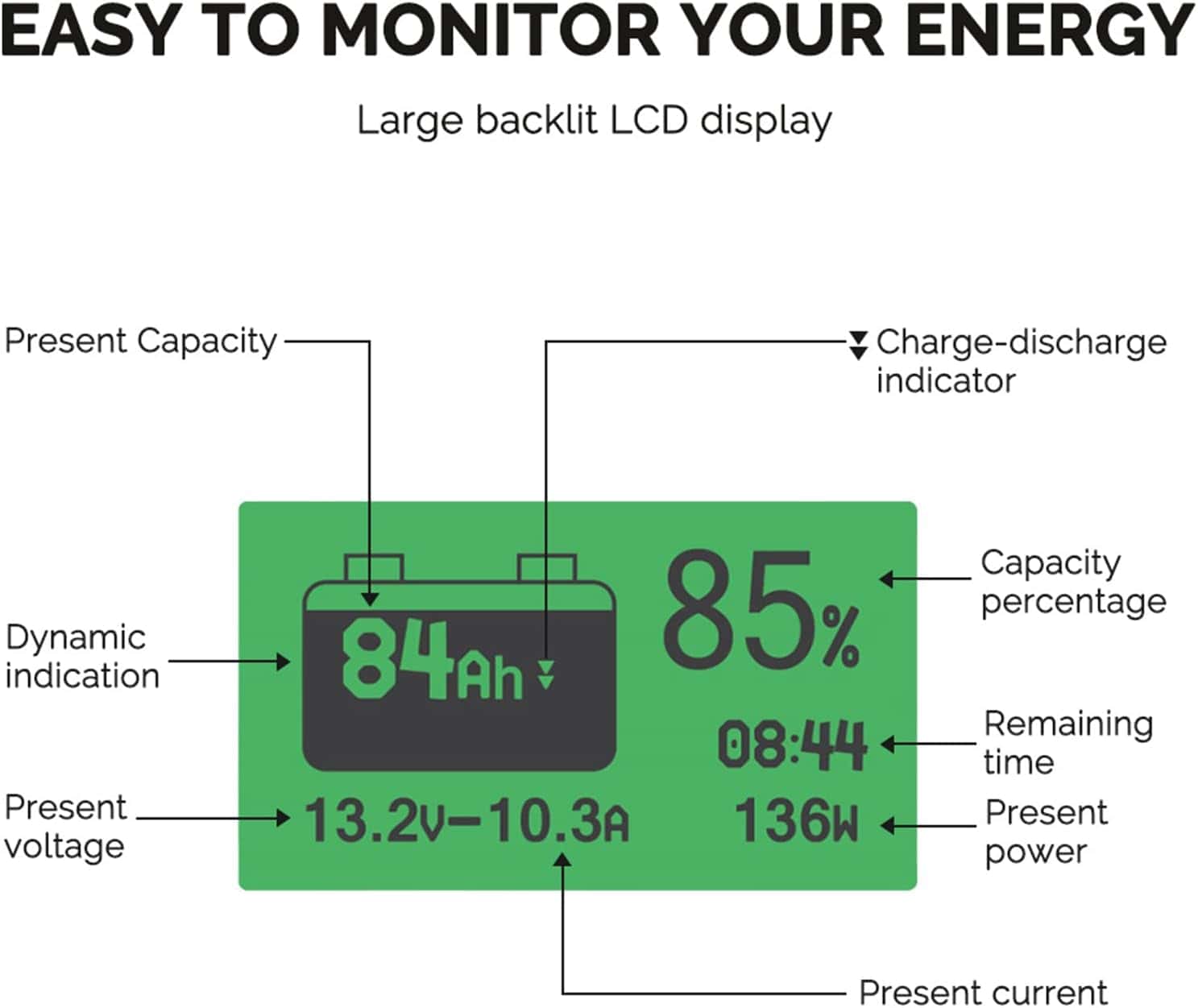

Renogy Battery Monitor is a high-precision device designed to track the performance of most types of batteries, helping eliminate guesswork and optimize both usage and longevity. Compatible with voltages ranging from 10V to 120V and currents up to 500A, this universal monitor ensures accurate readings with ±1% accuracy for voltage, current, and capacity. It features adjustable brightness levels to enhance nighttime visibility while conserving battery power, and allows you to customize the turn-off voltage to further save energy. Known as a professional’s choice, the monitor helps detect battery degradation in real time, with an operating temperature range from 32°F to 95°F. The backlight automatically turns off when the charging current is below 100mA, ensuring minimal standby power consumption (1mA dissipation). Equipped with data storage, it saves the last testing data when powered off, and provides precise current detection for accurate battery state of charge. Users can set alarms for high or low current voltages, with the backlight and voltage value displayed when an alarm is triggered. The shunt holder makes installation easy, and the long shielded wire lets you monitor your battery from a distance. Whether you're using it for home, RV, or solar systems, this monitor offers reliable, real-time data to help maximize your battery's lifespan and performance.

Technical Details
